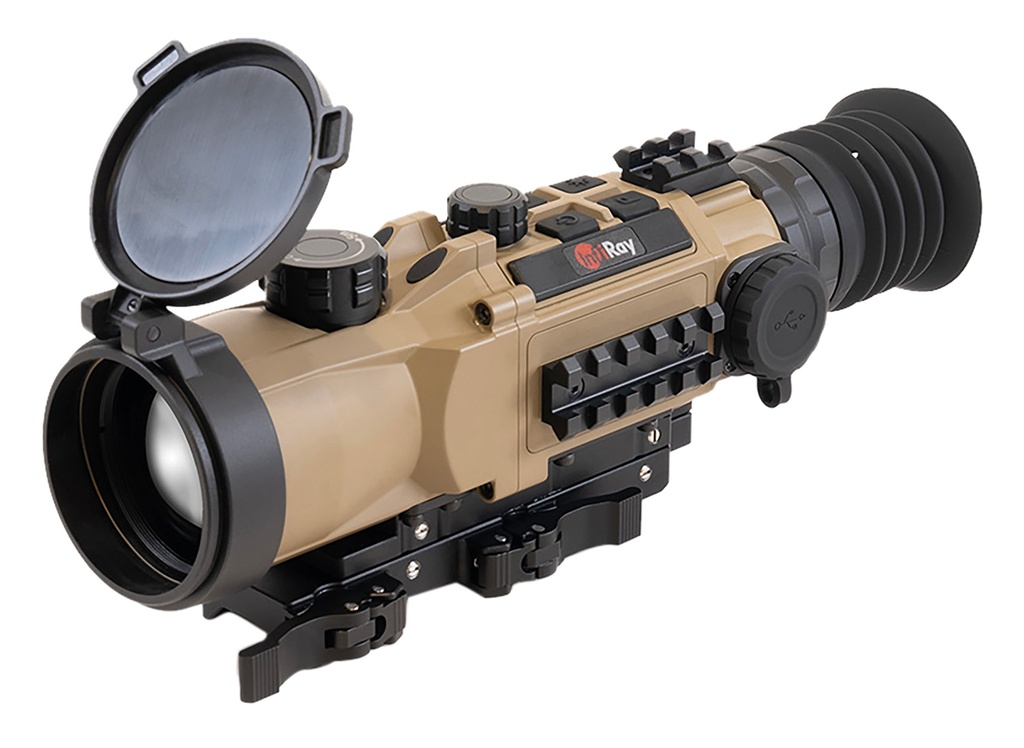

First introduced as the powerful combination of a thermal weapon sight and a thermal clip-on unit the HYBRID line-up continues to evolve with specialized models top-performing sensors and an advanced feature set designed for technical shooters. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing a sharp image and massive eye relief. The HYBRID also unlocks advanced features such as compatibility with a 1000 yard laser rangefinder a custom ballistic reticle generator wireless remote and an onboard ballistic solver. This year the HYBRID family expands with the addition of the 50 mm 90 Hz model (HYL50W) optimized for smooth motion and fast moving targets. - Optics - Display Type AMOLED - Eye Relief 60mm - Objective Focal Length 50mm - Digital Magnification 8X - Diopter Range -4 to +2 - Vertical Angular Field of View 5.6° - Horizontal Angular Field of View 7.5° - Focusing Mechanism Manual Focus - Objective F# 1.0 - Objective Diameter 50mm - Objective Lens Material Germanium - Display Resolution 2560x1920 - Detection Range 2000 Yards - Optical Magnification 3X - Features & Performance - Warranty 5 Years - Startup Time <10 Seconds Instant from Standby - Rangefinder ILR-1000-2 LRF (Optional/Not Included) - Color Palettes White Hot Black Hot Red Hot Iron Red Rainbow Outline - Picture-in-Picture Yes - Storage Capacity 64GB - Connector Output Power/Data - User-Updatable Firmware Yes - Mobile App Yes - Run Time 6+ - Power Source USB-C External IBP-1H Li-ion Battery Pack - Stand-by Mode Yes - Reticle 9 (7 Static 1 DIY 1 BDC) - Connector Type USB-C - External Power Source USB-C - Country of Manufacture China - Wifi Yes - Onboard Recording Yes - Image Capture Yes - Environmental Specifications - Operating Temperature Range -4°F~122°F - Recoil Rating 1000 g/s² (300 Win./7mm Mag) - Ingress Protection IP67 - Physical - Mounting Interface Picatinny MIL-STD 1913 Rail - Housing Material Magnesium Alloy - Weight 30.01 Oz. - Height 2.99 - Width 3.03 - Length 11.02 - Sensor Specifications - Sensor Type InfiRay MICRO II - Sensor Pixel Size 17um - Thermal Sensitivity <25mk - Non-Uniformity Correction (NUC) Manual Automatic Semi-Automatic - Sensor Frame Rate 50hz / 90hz - Device Technology Thermal Imaging - Sensor Resolution 384×288
